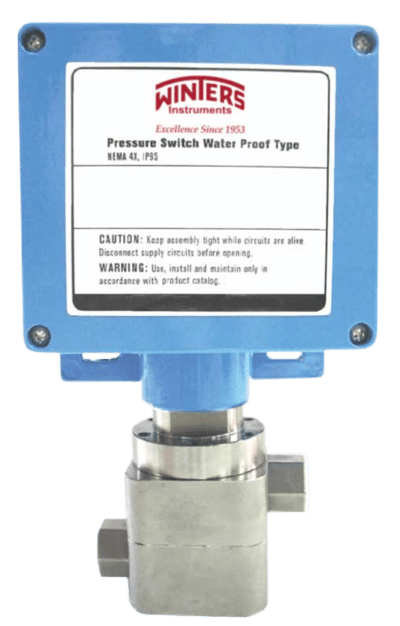

5WPS Differential Pressure Switch
Brand: Winters Instruments
The 5WPS series is a differential pressure switch.
Features- Low pressure to 500 psi
- High current ratings for 1 x SPDT or 2 x SPDT switches
- Fixed deadband
- Die cast aluminum construction with welded seal
- 1% accuracy
- NEMA 4 & 4X, IP66 rated
- cRU recognized (switch only), fi le no E12252
- CRN registration
Specifications
Brand
Housing
- Heavy-duty die-cast aluminum, blue colour
Accuracy
- ± 1 % of the adjustable set-point range
Pressure Connection
- Female 1/4" NPT or BSP
Electrical Connection
- Female 1/2" or 3/4" NPT
- M20 x P1.5
Wetted Parts
- Low pressure ranges - 316 Stainless Steel welded & Titanium
- High pressure ranges - 316 Stainless Steel welded
Contact Rating
- 15A @ 125/250 Vac
- 0.4 A @ 125 Vdc
- 3A @ 30 Vdc
- Gold Contact Microswitch: 1 A @ 125/250 Vac
Number of Contacts
- 1 x SPDT or 2 x SPDT
Process Temperature
- -30° to 205° C
Enclosure Rating
- NEMA 4 & 4X, IP66
- Protection against liquid and solid ingress, suitable for indoor or outdoor use and resistant to corrosion
Approvals
- Switch Only: cRU recognized, fi le no E12252
- CRN registration pending
