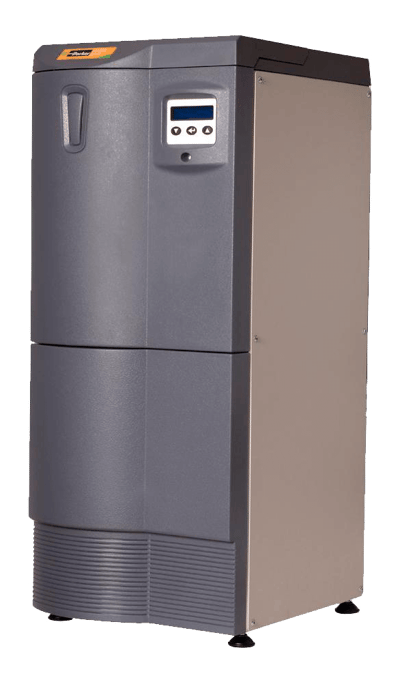

321584_High_Purity_Nitrogen_Generators_for_Analytical_Instruments_Including_ICP__IMAGE-1001.png
Images are representations only.

High Purity Nitrogen Generators for Analytical Instruments Including ICP

Brand: Domnick Hunter - by Parker
Request Information
Favorite

Parker domnick hunter nitrogen gas generators employ robust, field proven technology to produce high purity nitrogen for life science, chemical analysis and spectroscopy applications. Flow rates range from 5 to 12.5 lpm, with purities from 99.8 to 99.999%.

The generators provide a continuous stream of high purity nitrogen from a single ‘plug & play’ unit. Models are available with and without an integral oil free compressor, are extremely quiet in operation and are fully approved for use by major instrumentation manufacturers.

Innovative design features include economy mode as standard which extends compressor life and significantly reduces on going running costs.
Features
  • Complete ‘Plug and Play’ system for laboratory applications
  • Produces a continuous supply of nitrogen from 99.8% to 99.999% purity
  • Integral oil free compressor
  • Eliminate inconvenient and potentially dangerous nitrogen cylinders
  • Compact, reliable with minimal operator attention and maintenance
  • Economy mode as standard, increases compressor life

Displaying prices & availability for Ohio, United States in CAD. Change location.

Models matching criteria: 8
HPN2-5000C
DOMNICK HUNTER Flow Rate - 5 L/min, Purity - >99.999%, Inlet Air @ 9 bar G - N/A , Intergal Compressor - Yes
100+ In Stock
$2,156.00 CAD
Does not ship to OH, United States
HPN2-5000
DOMNICK HUNTER Flow Rate - 5 L/min, Purity - >99.999%, Inlet Air @ 9 bar G - 110 L/min, Intergal Compressor - No
50+ In Stock
$1,772.00 CAD
Does not ship to OH, United States
HPN2-7000C
DOMNICK HUNTER Flow Rate - 7 L/min, Purity - >99.9%, Inlet Air @ 9 bar G - N/A , Integral Compressor - Yes
50+ In Stock
$1,654.00 CAD
Does not ship to OH, United States
HPN2-10000C
DOMNICK HUNTER Flow Rate - 10 L/min, Purity - >99.8%, Inlet Air @ 9 bar G - N/A , Integral Compressor - Yes
50+ In Stock
$1,952.00 CAD
Does not ship to OH, United States
HPN2-12500C
DOMNICK HUNTER Flow Rate - 12.5 L/min, Purity - >99.5%, Inlet Air @ 9 bar G - N/A , Integral Compressor - Yes
25+ In Stock
$1,633.00 CAD
Does not ship to OH, United States
HPN2-10000
DOMNICK HUNTER Flow Rate - 10 L/min, Purity - >99.8%, Inlet Air @ 9 bar G - 110 L/min, Integral Compressor - No
25+ In Stock
$1,297.00 CAD
Does not ship to OH, United States
HPN2-7000
DOMNICK HUNTER Flow Rate - 7 L/min, Purity - >99.9%, Inlet Air @ 9 bar G - 110 L/min, Integral Compressor - No
25+ In Stock
$1,462.00 CAD
Does not ship to OH, United States
HPN2-12500
DOMNICK HUNTER Flow Rate - 12.5 L/min, Purity - >99.5%, Inlet Air @ 9 bar G - 129 L/min, Integral Compressor - No
6 In Stock
$2,324.00 CAD
Does not ship to OH, United States

Specifications

Brand

Depth (inch)

  • 26.3

Depth (mm)

  • 667

Gas Generated

  • Nitrogen

Gas Purity

  • > 99.5 % to > 99.999 %

Height (inch)

  • 34.2

Height (mm)

  • 869

Inlet Air Quality

  • ISO 8573-1 2,-,1

Inlet Air Requirement

  • N/A or 110 L/minute @ 9.9 barg (143 psig) to 129 L/minute @ 9.9 barg (143 psig)

Inlet Port Size (inch)

  • 1/4” Compression Fitting

Maximum Operating Temperature (°C)

  • 25° C

Maximum Operating Temperature (°F)

  • 77° F

Maximum Outlet Pressure (barg)

  • 5

Maximum Outlet Pressure (psig)

  • 72.5

Minimum Operating Temperature (°C)

  • 15° C

Minimum Operating Temperature (°F)

  • 55° F

Outlet Port Size (inch)

  • 1/4” Compression Fitting

Preventive Maintenance Kit

  • 12 Month Filter Kit: 6062725598000 Hours / 24 Month Compressor Kit: 606272581, 12 Month Filter Kit: 6062725598000 Hours / 24 Month Compressor Kit: 606272583, 12 Month Filter Kit: 606272557

Weight (kg)

  • 86 to 95

Weight (Lbs)

  • 189.6 to 209.4

Width (inch)

  • 13.6

Width (mm)

  • 345
