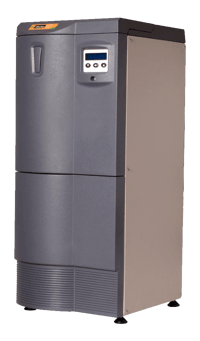

HPN2-10000C
Series: High Purity Nitrogen Generators for Analytical Instruments Including ICP Brand: Domnick Hunter - by ParkerDOMNICK HUNTER Flow Rate - 10 L/min, Purity - >99.8%, Inlet Air @ 9 bar G - N/A , Integral Compressor - Yes
Price
$1,952.00
CAD
Stock
50+ In Stock
Specifications
Depth (inch)
- 26.3
Depth (mm)
- 667
Gas Generated
- Nitrogen
Gas Purity
- > 99.5 % to > 99.999 %
Height (inch)
- 34.2
Height (mm)
- 869
Inlet Air Quality
- ISO 8573-1 2,-,1
Inlet Air Requirement
- N/A or 110 L/minute @ 9.9 barg (143 psig) to 129 L/minute @ 9.9 barg (143 psig)
Inlet Port Size (inch)
- 1/4" Compression Fitting
Maximum Operating Temperature (°C)
- 25° C
Maximum Operating Temperature (°F)
- 77° F
Maximum Outlet Pressure (barg)
- 5
Maximum Outlet Pressure (psig)
- 72.5
Minimum Operating Temperature (°C)
- 15° C
Minimum Operating Temperature (°F)
- 55° F
Outlet Port Size (inch)
- 1/4" Compression Fitting
Preventive Maintenance Kit
- 12 Month Filter Kit: 6062725598000 Hours / 24 Month Compressor Kit: 606272581, 12 Month Filter Kit: 6062725598000 Hours / 24 Month Compressor Kit: 606272583, 12 Month Filter Kit: 606272557
Weight (kg)
- 86 to 95
Weight (Lbs)
- 189.6 to 209.4
Width (inch)
- 13.6
Width (mm)
- 345
