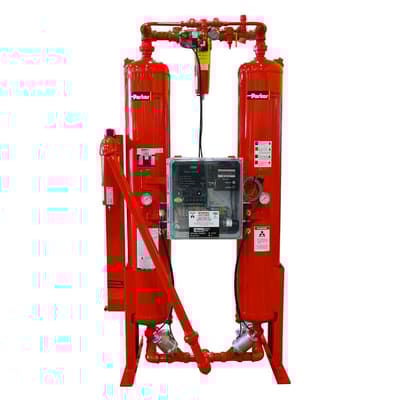

Low Dewpoint Heatless Desiccant Air Dryer - DTL Series

Brand: Domnick Hunter - by Parker

Parker Airtek DTL Series Heatless Desiccant Air Dryers remove water vapor from compressed air through the adsorption and pressure swing process.  Utilizing the twin tower design and a solid state controller, compressed air is directed through one tower where water vapor is adsorbed.  A portion of that dried air is then directed through the other tower to regenerate (purge) that off stream bed of the moisture adsorbed during the previous cycle.  DTL Series Heatlesss Desiccant Air Dryers are designed to provide a dewpoint of -100°F (-70°C) for the most critical of drying applications.
Features
  • Upflow drying and down flow regeneration in order to minimize the effects of any liquid slugging of the unit
  • Sequence Annunicator
  • Variable Cycle Control
  • Surge protection
  • NEMA 4/12 controls

Specifications

After-Filter Part Number

  • AR015BNMI, AR015CNMI, AR020CNMI, AR020DNMI, AR025DNMI, AR025ENMI, AR030ENMI, AR030 GNMI, AR035 GNMI

After-Filter Replacement Element

  • 015AR, 020AR, 025AR, 030AR, 035AR

Applications

  • Industrial

Connection Type

  • 3/8” NPT, 1/2” NPT, 3/4” NPT, 1” NPT, 1-1/2” NPT, 2-1/2” NPT

Depth (inch)

  • 14, 18, 22, 27

Dryer Technology

  • Desiccant Desiccant, Heatless

Height (inch)

  • 44, 63, 48, 70, 80, 78, 76, 84

Installed Condensate Drain

  • None

Maximum Ambient Temperature (°F)

  • 120° F

Maximum Flow Rate (m³/hr)

  • 16.99, 25.49, 42.48, 67.96, 101.94, 135.92, 169.90, 271.84, 382.28, 543.68

Maximum Operating Pressure (psi)

  • 150

Maximum Operating Temperature (°F)

  • 120° F

Minimum Ambient Temperature (°F)

  • 35° F

Minimum Operating Pressure (psi)

  • 80

Minimum Operating Temperature (°F)

  • 50° F

Pre-installed Optional Accessories

  • Pre & after Filtration

Prefilter Part Number

  • AA015BNFI, AA015CNFI, AA020CNFI, AA020DNFI, AA025DNFI, AA025ENFI, AA030ENFI, AA030 GNFI, AA035 GNFI

Prefilter Replacement Element

  • 015AA, 020AA, 025AA, 030AA, 035AA

Purge Rate

  • 2, 3, 4, 6, 9, 12, 15, 24, 34, 48

Rated Inlet Pressure (psi)

  • 100

Weight (Lbs)

  • consult Factory

Width (inch)

  • 19, 20, 30, 31, 32, 39, 41

  • Pharmaceutical
  • Food & Drug
  • Microchip Manufacturing
