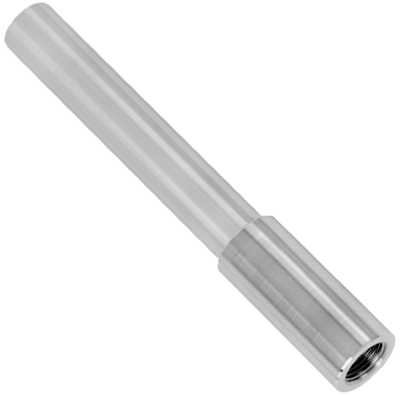

Model 385TWW Socket Weld Thermowell
Brand: Tel-Tru Manufacturing Co.Application: 3/4" or 1" nominal pipe size welding shoulder fits ASA welding fittings, flanges, etc.
Features- Machined from solid bar stock for standard or high velocity requirements in a large selection of materials and coatings
- Designed and manufactured to assure perfect alignment with the thermometer stem
Specifications
Bore Size
- 0.385” (9.78 mm)
Diameter
- Shank Diameter: 49/64” (19.4 mm)
Insertion 'U' Length
- 10-1/2” (26.7 cm)
- 13-1/2” (34.3 cm)
- 16-1/2” (41.9 cm)
- 2-1/2” (6.4 cm)
- 22-1/2” (57 cm)
- 4-1/2” (11.4 cm)
- 7-1/2” (19.1 cm)
Materials of Construction
- 304 Stainless Steel
- 316 Stainless Steel
- Carbon Steel (C-1018)
Pipe Size
- 1.050” (26.67 mm)
- 1.315” (33.4 mm)
Stem Length
- 4” to 24” (10 to 61 cm)
Welded Connection
- 1” Socket Weld End Male
- 3/4” Socket Weld End Male
