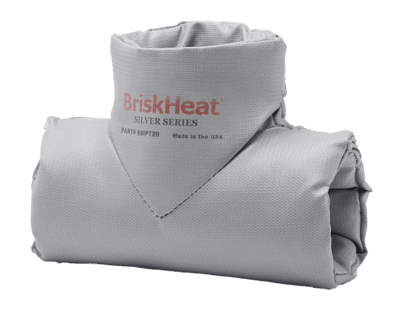

Silver-Series Insulators Tee

Brand: Briskheat

Silver-Series 2 Tee Insulators are part of a configurable system of removable insulator blankets and covers that feature durable high-temperature cloth, energy-efficient fiberglass insulation, and hook & loop closures for easy installation and removal.

Silver-Series 2 is a cost-effective solution that improves thermal efficiency for hot and cold pipes, tanks, and vessels in industrial and commercial environments.

Fitting: Tee Shape
Insulation ID sizes: 1.5 in, 2 in, and 4.25 in
Removable and reusable design provides economical solution
Features
  • Easy-to-install configurable system with cut-to-length straights
  • Durable product design delivers long serive life
  • Moisture & chemical resistant
  • High-temperature resistance
  • Fire-retardant, asbestos-free material
  • Custom designs can be manufactured for unique requirements

Specifications

Brand

Maximum Exposure Temperature

  • Up to 500° F (260° C)

Facing & Liner Material

  • PTFE Cloth

Insulation

  • 1" (25 mm) Thick Fiberglass

Thermal Performance

  • R3.3, KO.21@75° F (24° C)

IP Rating

  • IP54

ID of Insulator

  • 1.50" to 4.25" (38 to 108 mm)

Length

  • 8.00" (203 mm)
  • 9.00" (229 mm)
  • 12.00" (305 mm)

  • Hot & Cold Pipes, Tanks, Vessels in Industrial and Commercial Environments
