Legris Polymer Blowgun
Images are representations only.

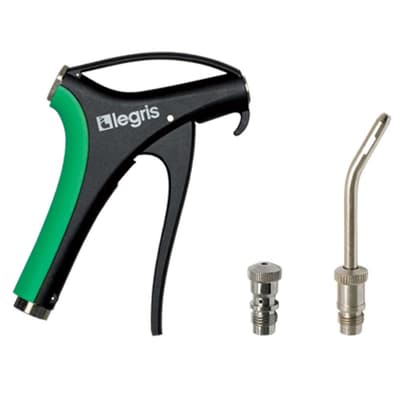

Polymer Blowgun

Brand: Legris - by Parker
Request Information
Favorite

The Parker Legris polymer blowgun offers ease of use, energy saving, adaptability and efficiency. These blowguns comply with international regulations for health, safety and noise levels.
Features
Quality & Performance
  • Comply with international standards for noise and pressure regulation
  • Powerful flow with progressive control
  • Rotating nozzle for directional jet
  • Durable, shock-resistant materials
  • 100% leak and flow-tested in production
  • Date coding to guarantee quality and traceability

Safety & Sustainable Development
  • 40% energy consumption reduction with Energy-Saving model
  • Complete user safety with the Safety model
  • Wide selection of nozzles which comply with noise and pressure level regulations

Ergonomics & Versatility
  • Comfortable to use
  • Lightweight and easy to use
  • Wide range of models and nozzles for optimum blowing power and flow rate
  • Lower or upper connection

View Details

Specifications

Brand

Applications

  • Packaging
  • Cooling
  • Ejection
  • Blowing
  • Cleaning
  • Mixing
  • Manufacturing Workshops

Diameter

  • Nominal: 2 to 3.5 mm

Fitting Connection Type

  • Female Thread, BSPP

Flow Rate

  • 120-860 L/min

Gripping Ring Material

  • Stainless Steel

Material of Construction

  • Nickel-Plated Brass
  • Technical Polymer

Maximum Operating Pressure

  • 10 bar
  • 145.038 psi

Maximum Operating Temperature

  • 80° C
  • 176° F

Media

  • Other Fluids: Contact Us
  • Compressed Air

Quantity Per Box

  • 1 to 10

Seal Material

  • NBR

Specifications Met

  • DI: 2003/10/EC
  • DI: 1910.95 (B) [OSHA]
  • DI: 1910.242 (B) [OSHA]
  • DI: 1907/2006 (REACH)
  • DI: 2002/95/EC (RoHS),2011/65/EC
  • DI: 97/23/EC (PED)

Valve Type

  • No Valve

Weight

  • 0.014 to 0.195 kg

  • Manufacturing Workshops
  • Cleaning
  • Cooling
  • Blowing
  • Mixing
  • Ejection
  • Packaging
