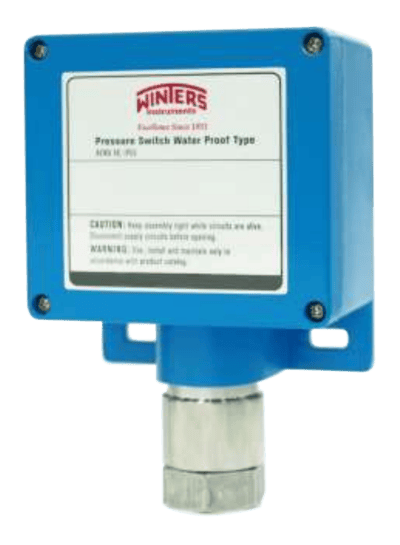

2WPS General Purpose And Adjustable Deadband Pressure Switch
Brand: Winters Instruments2WPS Series general purpose and adjustable deadband pressure switch.
Features- General Purpose, watertight pressure switch
- Low pressure to 4,000 psi
- High current ratings for 1 x SPDT or 2 x SPDT switches
- Fixed or adjustable deadband options
- Die cast aluminum construction with welded seal
- 1% accuracy
- NEMA 4, 4X & IP66 rated
- cRU recognized (switch only)
- CRN registration pending
- 5 year warranty
Specifications
Brand
Housing
- Heavy-duty die-cast aluminum, blue colour
Accuracy
- +/- 1% of the adjustable set-point range
Pressure Connection
- Female 1/4”
- 1/2” NPT
- 1/2" BSP
- M20xP1.5
Electrical Connection
- Female 1/2” or 3/4” NPT
- M20xP1.5
Wetted Parts
- 316 Stainless Steel welded
Contact Rating
- Fixed Deadband: 15A @ 125/250VAC, 0.4A @ 125VDC,
- Adjustable Deadband: 20A @ 125/250/480VAC
Number of Contacts
- 1 x SPDT or 2 x SPDT
- Suitable for pump and compressor monitoring, HVAC systems and general industrial applications.
