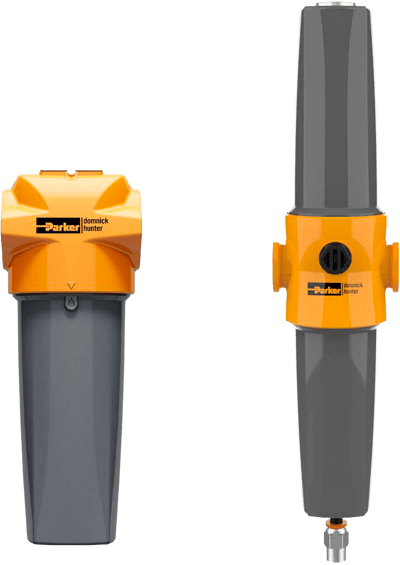

Oil - X "Point of Use" Oil Vapour Removal Filters

Brand: Domnick Hunter - by Parker

Oil vapor is oil in a gaseous form and will pass straight through coalescing filters which are designed to remove liquid oil and oil aerosols, Parker recommend activated carbon adsorption filter technology for the removal of oil vapor.

OIL-X 'point of use' oil vapor removal filters are available in two options: the Grade ACS single stage adsorption filter and Grade AC double stage filter - Grade AC consists of both coalescing and adsorption filter elements combined into one housing.

OIL-X Grades ACS and AC are used for smaller flow rate applications and applications where more frequent element changes can be tolerated.
Features
  • High efficiency 'point of use' filters
  • Protects downstream equipment and processes
  • Provides high quality, clean, oil free compressed air to international standards
  • Reduced cost of ownership• Enhanced health and safety
  • Suitable for all types of air compressor and compatible with all compressor lubricants
  • Manufactured in accordance with ISO9001

Specifications

Filter Type

  • Oil Vapor Removal

Flow Rate

  • 13 to 18380 @ 100 psig CFM

Minimum Operating Pressure

  • 1 barg
  • 15 psig

Minimum Operating Temperature

  • 2° C
  • 35° F

Maximum Operating Pressure

  • 50° C
  • 122° F
