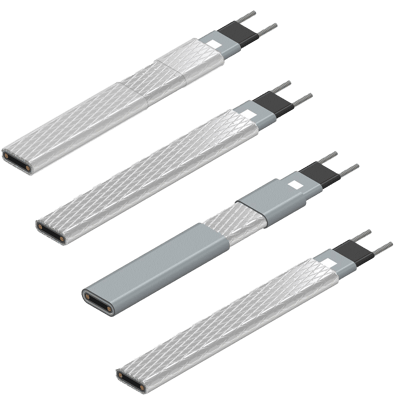

SLCAB Low-Temperature Self-Regulating Heating Cable

Brand: Briskheat

BriskHeat Cut-to-Length and FM Approved Self-Regulating Heating Cable is ideal for freeze protection and low temperature process maintenance up to 150⁰ F (65⁰ C).

Also known as self-regulating heat trace cable, it self-regulates temperature by automatically adjusting heat output based on surface and ambient temperatures. No temperature controller is required, unless specified.

Note: Special consideration must be given for the circuit breaker due to the high initial in-rush currents

B notes Tinned Copper Metal Braid
BP notes Tinned Copper Metal Braid with Thermoplastic Polyolefin Overjacket
BF notes Tinned Copper Metal Braid with Fluoropolymer Overjacket
SS notes Stainless Steel Metal Braid
Features
  • Safe to overlap and insulate
  • Moisture, chemical, and flame resistant
  • Can be cut-to-length and terminated in the field

Specifications

Brand

Maximum Continuous Maintenance Temperature

  • 250° F (121° C)

Intermittent Exposure Temperature

  • -20° to 185° F (-29° to 85° C)

Supply Voltage

  • 110-120 VAC
  • 208-277 VAC

Nominal Power Output

  • 3, 5, 8, 10 W/ft (10, 16, 26, 33 W/m) @50° F (10° C)

Bus Wire

  • 16 AWG Nickel Coated Copper Wire

Braid Resistance

  • Tinned Copper 0.003 Ω/ft (0.009 Ω/m)

Bend Radius

  • 0.5 in (12 mm)

Certifications & Approvals

  • FM
  • CSA
  • ATEX
  • IEC/IECEx
