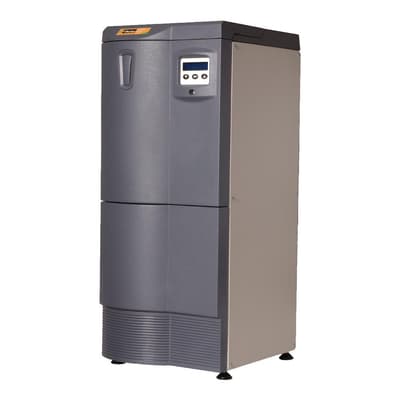

Ultra High Purity Zero Nitrogen Generators for GC Makeup Gas & Carrier Gas Applications
Brand: Domnick Hunter - by ParkerParker domnick hunter zero nitrogen generators employ robust, field proven technology to produce ultra high purity nitrogen for GC makeup and carrier gas applications. An integral heated platinum catalyst ensures carrier grade nitrogen free from organic impurities to < 0.1ppm.
The generators provide a continuous stream of ultra high purity nitrogen from a single ‘plug & play’ unit. Models are available with and without an integral oil free compressor, are extremely quiet in operation and are fully approved for use by major instrumentation manufacturers.
Innovative design features include economy mode as standard which extends compressor life and significantly reduces on going running costs.
Features- Ultra high purity, organic free, nitrogen
- Economy mode as standard, increases compressor life
- Ideal for GC make-up and carrier gas applications including ECD
- Integral oil free compressor
- Eliminate inconvenient and potentially dangerous nitrogen cylinders
- Compact, reliable with minimal operator attention and maintenance
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 8
DOMNICK HUNTER Flow Rate - 1 L/min, Purity - >99.9995%, Intergral Compressor - No, Power - 103 -126 V 60 Hz
50+ In Stock
$1,184.00
CAD
Does not ship to OH, United States
DOMNICK HUNTER Flow Rate - 3 L/min, Purity - >99.9995%, Intergral Compressor - No, Power - 207-253 V 50/60 Hz
50+ In Stock
$1,404.00
CAD
Does not ship to OH, United States
DOMNICK HUNTER Flow Rate - 3 L/min, Purity - >99.9995%, Intergral Compressor - Yes, Power - 207-253 V 50/60 Hz
50+ In Stock
$918.00
CAD
Does not ship to OH, United States
DOMNICK HUNTER Flow Rate - 1 L/min, Purity - >99.9995%, Intergral Compressor - Yes, Power - 103 -126 V 60 Hz
50+ In Stock
$95.00
CAD
Does not ship to OH, United States
DOMNICK HUNTER Flow Rate - 3 L/min, Purity - >99.9995%, Intergral Compressor - Yes, Power - 103 -126 V 60 Hz
25+ In Stock
$1,870.00
CAD
Does not ship to OH, United States
DOMNICK HUNTER Flow Rate - 1 L/min, Purity - >99.9995%, Intergral Compressor - No, Power - 207-253 V 50/60 Hz
25+ In Stock
$2,396.00
CAD
Does not ship to OH, United States
DOMNICK HUNTER Flow Rate - 1 L/min, Purity - >99.9995%, Intergral Compressor - Yes, Power - 207-253 V 50/60 Hz
13 In Stock
$1,426.00
CAD
Does not ship to OH, United States
DOMNICK HUNTER Flow Rate - 3 L/min, Purity - >99.9995%, Intergral Compressor - No, Power - 103 -126 V 60 Hz
12 In Stock
$1,968.00
CAD
Does not ship to OH, United States
Specifications
Depth (inch)
- 26.3
Depth (mm)
- 667
Gas Generated
- Nitrogen
Gas Purity
- > 99.9995 %
Height (inch)
- 34.2
Height (mm)
- 869
Inlet Air Quality
- N/A or ISO 8573-1 Class 2,-,1
Inlet Air Requirement
- N/A or 42 L/minute @ 9.9 barg (143 psig) to 52 L/minute @ 9.9 barg (143 psig)
Inlet Port Size (inch)
- N/A or 1/4” Compression Fitting
Maximum Operating Temperature (°C)
- 25° C
Maximum Operating Temperature (°F)
- 77° F
Maximum Outlet Pressure (barg)
- 5
Maximum Outlet Pressure (psig)
- 72.5
Minimum Operating Temperature (°C)
- 15° C
Minimum Operating Temperature (°F)
- 59° F
Outlet Port Size (inch)
- 1/8” Compression Fitting
Preventive Maintenance Kit
- 12 month filter kit: 606272563
- 12 month (4000 hours) Compressor kit: 606272581 or 12 month filter kit: 606272563 or 12 month (4000 hours) Compressor kit: 606272583, 12 month filter kit: 606272561
Weight (kg)
- 86 to 96
Weight (Lbs)
- 189.5 to 211.6
Width (inch)
- 13.6
Width (mm)
- 345
