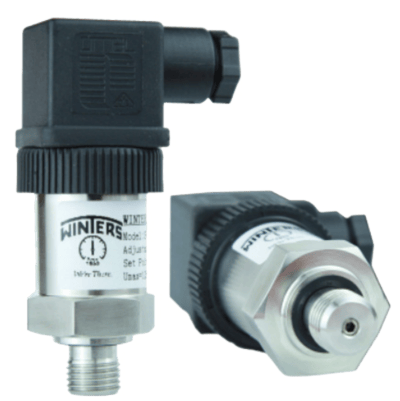

1WPS Compact Pressure Switch
Brand: Winters Instruments1WPS Series compact pressure switch.
Features- Compact all purpose pressure switch
- All stainless steel housing with diaphragm or piston actuated sensor
- Wide range of electrical switching outputs
- 1 x SPDT
- IP65 standard, IP67 optional
- Built in restrictor screw to safeguard against pulsations
- 5 year warranty
Specifications
Brand
Housing Material
- 304L Stainless Steel
Accuracy
- 2% of full scale
Pressure Connection
- 1/4" NPT
- G1/4"
- M14x1.5
- M20x1.5
Electrical Connection
- DIN ISO
- cable outlet optional
Wetted Parts
- Diahpragm Sensor: NBR
- Piston Sensor: 304L SS with NBR o-ring
Deadband
- 10-20% of setpoint
Contact Rating
- 2A 30VDC
- 1A 42VDC
- 0.15A 115VDC
- 3A 42VAC
- 5A 125VAC
- 3A 250VAC
Sensor Type
- Low Pressure: Diaphragm
- High Pressure: Piston
Number of Contacts
- 1 X SPDT
Process Temperature
- -4 °F to 185 °F
- -20 °C to 85 °C
Enclosure Rating
- DIN: IP65
- Cable Leads: IP67
Vibration
- 10g 10-500 Hz, MIL-STD-202F
Shock
- 50g 11 ms, MIL-S-901C
- Suitable for all machinery in commercial and industrial sectors
