Junction Box Power Connection Kit
Price
$1,269.00
CAD
Stock
17 In Stock
The PTBS-GET kit is designed to connect power to BriskHeat SLCBL-BP and BF Series heating cables.
The PTBS-GET integrates the functions of connection kits and insulation entries. The rugged stand protects the heating cable and allows up to 132 mm of thermal insulation. The innovative spring clamp terminals provide safe, reliable, maintenance-free operation.
PTBS-GET contains all the necessary materials for a complete certified installation.
This kit provides enough to complete one input connection for one heating cable. Up to three heating cables can be connected to this junction box with optional silicone frog leg expansion kits (sold separately).

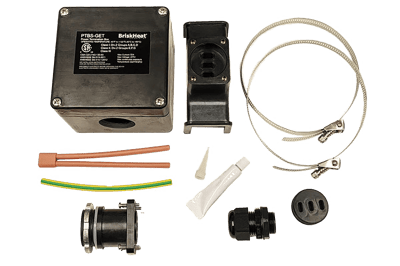

Kit Includes:
- 1 – Multiple entry junction box with rail mounted DIN terminal block electrical connections
- 1 – 0.75 in NPT pip T-standoff (lower bracket)
- 1 – Pipe standoff strain relief (upper bracket)
- 1 – Lock nut
- 1 – Watertight sealing grommet
- 2 – Pipe straps – for 2 in to 6 in (51 mm to 152 mm) O.D. pipes
- 1 – Watertight sealing plug
- 1 – Silicone frog leg
- 1 – Green/yellow heat-shrink tube – 0.25 in x 6 in (6 mm x 150 mm)
- 1 – 0.34 oz (10 ml) tube of RTV sealant
- Approved for ordinary and hazardous locations
- Voltages up to 240 VAC
- Easy to install – hot work permit not required
- Easy re-entry for maintenance
- Compatible with up to 4 in (102 mm) of insulation and cladding
- Available Light Colors: Green or Red
Specifications
Brand
Voltage
- 110-120 V
- 208-277 V
Maximum Current
- 32 A
Material of Construction
- Fire Retardant FRP Composite Polymer
Approximate Volume
- 38.75 in³ (635 cm³)
Operating Temperature
- -40° to 122° F (-40° to 50° C)
Maximum Continuous Exposure Temperature
- T5: 212° F (100° C)
Certifications & Approvals
- CSA
