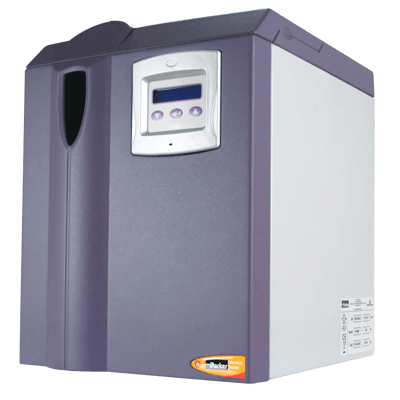

Hydrogen Generators for GC Fuel Gas Applications

Brand: Domnick Hunter - by Parker

The Parker domnick hunter H high purity hydrogen gas generators offer the optimum combination of safe operation, reliability and performance.

Utilising field proven PEM cell technology, hydrogen is produced on demand from deionised water and electricity, at low pressure and with minimal stored volume. Innovative control software allows unrivalled operational safety and reliability.

The H generators ideally supply fuel gas to all known GC combustion detectors used in today’s laboratory workflows. Three models operate at flow rates; 160 ml/min, 250 ml/min and 500 ml/min.

Hydrogen generators are available with Remote Networking software. Remote Networking software allows up to 27 hydrogen generators to be actively controlled from one central PC, and facilitates true cascading capabilities.
Features
  • Eliminate dangerous hydrogen cylinders from the work place
  • Simple to install and operate
  • Compact, reliable with minimal maintenance
  • Produces a continuous supply of 99.9995% pure hydrogen at up to 6.9 bar
  • 2 year standard cell warranty
  • Optional automatic water fill and remote networking capability

Models matching criteria: 3
DOMNICK HUNTER Flow Rate -160 ml/min, Purity - >99.99995%, Water Consumption 1.25 L/Week, Optional Auto Water Fill - Yes
100+ In Stock
$2,128.00 CAD
Does not ship to OH, United States
DOMNICK HUNTER Flow Rate -500 ml/min, Purity - >99.99995%, Water Consumption 4 L/Week, Optional Auto Water Fill - Yes
50+ In Stock
$1,305.00 CAD
Does not ship to OH, United States
DOMNICK HUNTER Flow Rate - 250 ml/min, Purity - >99.99995%, Water Consumption 2 L/Week, Optional Auto Water Fill - Yes
9 In Stock
$1,224.00 CAD
Does not ship to OH, United States

Specifications

Depth (inch)

  • 437

Depth (mm)

  • 437

Electrical Requirements

  • 90-264 V 50/60 Hz

Gas Generated

  • Hydrogen

Gas Purity

  • > 99.9995

Height (inch)

  • 18

Height (mm)

  • 456

Maximum Operating Temperature (°C)

  • 40° C

Maximum Operating Temperature (°F)

  • 104° F

Maximum Outlet Pressure (barg)

  • 6.89

Maximum Outlet Pressure (psig)

  • 100

Minimum Operating Temperature (°C)

  • 5° C

Minimum Operating Temperature (°F)

  • 41° F

Outlet Port Size (inch)

  • 1/8” Compression Fitting

Preventive Maintenance Kit

  • 6 Months: 604970600 24 Months: 604970532

Water Consumption

  • 1.25 L/week to 4 L/week

Water Quality

  • Deionised. ASTM II, > 1 MΩ, < 1 Ωs, Filtered to < 100 Ωm

Weight (kg)

  • 23 (Full of Water)

Weight (Lbs)

  • 51 (Full of Water)

Width (inch)

  • 14

Width (mm)

  • 342
